PART Architecture

Design Pylon Bog Fox Landmark / PART Architecture

Curated by Matheus Pereira
INFRASTRUCTURE, OTHER STRUCTURES • RISTI, ESTONIA
Architects : PART Architecture
Area : 100 m²
Year : 2020
Photographs : Tõnu Tunnel
Architecture : Sille Pihlak, Siim Tuksam
Engineering Consultants : Bollinger + Grohmann
Contractor : Empower AS
Lighting Designer : Silman
Foundations : Leonhard Weiss
City : Risti
Country : Estonia

2 1

Design pylon Lavatory Fox
The excessive voltage design pylon Lavatory Fox is a singular piece of infrastructural architecture. Combining native folklore, architectural design and infrastructural engineering, the Lavatory Fox has turn out to be a landmark for a holistic view on our dwelling setting in Estonia.

3 1

Common description

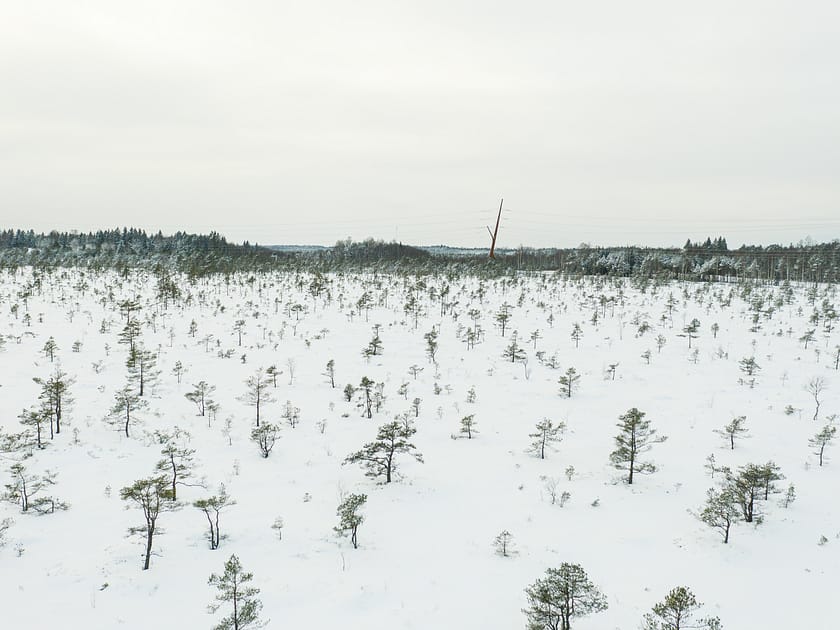

The nook pylon is a part of the third Estonian-Latvian electrical energy connection inside the bigger plan to affix the Continental European energy grid and frequency space. It’s located subsequent to Risti borough in Marimetsa-Õmma Nature Reserve. This delicate state of affairs referred to as for a extra refined strategy to the design of the outstanding pylon.

4 1

The Lavatory Fox has turn out to be a outstanding towering landmark of 45 metres on the so-called Risti intersection. Its branching kind makes it distinctive from both sides. Approaching it on the freeway, it marks the customer’s arrival on the border of Lääne County and on the intersection of Ääsmäe-Haapsalu and Risti-Virtsu Roads.

5 1

Idea

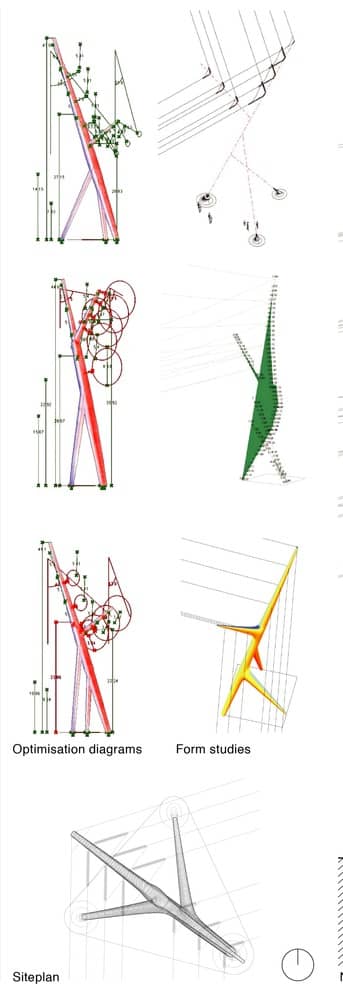

Utilising digital instruments and built-in design strategies the experience of architects, engineers and fabricators is mixed right into a synergetic design mannequin to provide you with one of the best answer. The design was primarily based on simplicity. Its three legs and two branches are created by intersecting 4 strains. The size, course and relative place of the axes stem from the geometric necessities set for energy strains and the actual structural wants. Out of the algorithmic optimisation outcomes, probably the most aesthetically pleasing kind was chosen. The profile cross-sections correspond to the adjustments in inside forces and thus create an aesthetically natural kind with minimal materials price. As a way to emphasise the shape, clean transitions have been created between the branches.

6 1

Development
The Lavatory Fox weighs greater than 30 tonnes whereas a daily lattice pylon would have weighed round 26-27 tonnes. As the protection coefficient of the structure is far larger for a design pylon than a tried and examined customary model, the Lavatory Fox design is definitely structurally extra environment friendly than a daily lattice pylon. It’s robust – the power in its toes can attain as much as 300 tonnes, the utmost diameter is 1.66 metres and most wall thickness 22 mm. The lifespan of a pylon is round 50 years however, in actuality, undoubtedly for much longer. The primary Estonian design pylon was manufactured in Romania and transported in 11 items on three vans. The weathering metal structure is a clear materials that varieties its personal protecting patina layer, which makes it fully upkeep free.
